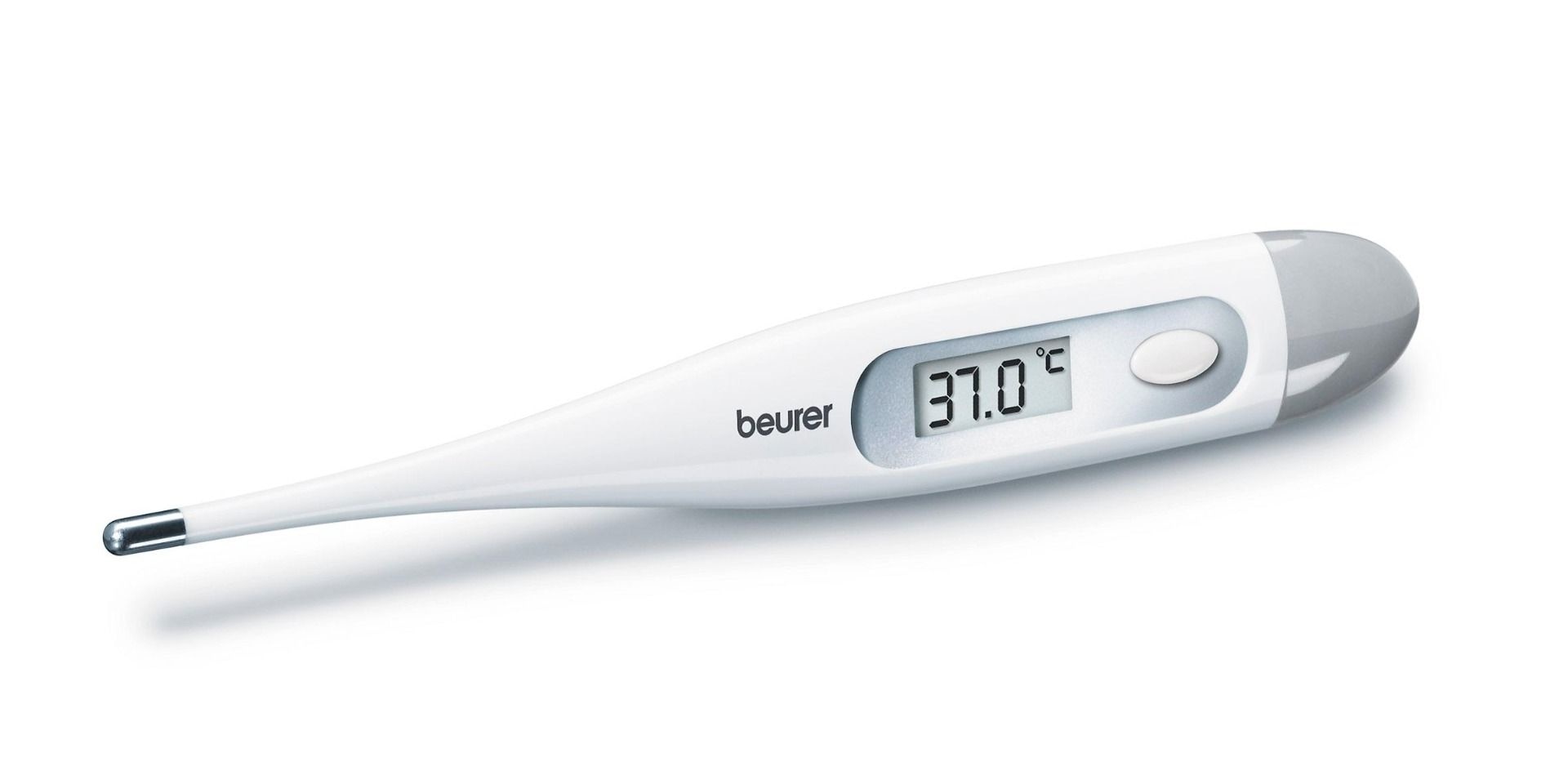

Beurer FT 09/1 White Thermometer

MDA Reg No:GB7193123-144800

• Digital thermometer
• Large Display
• 3-digit display
• Without glass
• Mercury free
• 100% waterproof
• Can be disinfected
• Measurment accurary ± 0.1°C (between 35.5 and 42°C)
  Measurment accurary ± 0.2°C (between 32 - 35.4°C and 42.1 - 42.9°C)
• Audible signal when measuring stops
• 1 memory place
• Automatic switch off
• With storage case
• Battery changing indicator
• Incl. 1 x 1,55V battery LR41

Warranty: 5 years

Origin

Germany

How to Use

First remove the protective foil from the display. For switching on, briefly press the on/off key. A short acoustic signal will announce that the thermometer is switched on. The thermometer will carry out a self-test for about 2 seconds. During the selftest all segments of the display will appear. Then the reference reading (37 °C) appears. Then the measurement symbol “°C” flashes and “Lo” is shown on the display. The thermometer is now ready for use. During the measurement, the current temperature is displayed continuously, and the “°C” symbol flashes on and off. The measurement is completed when a stable temperature has been reached. When this stage has been reached, an acoustic signal is heard, the “°C” symbol stops flashing and the temperature measured is displayed. As long as the measured temperature is below 32 °C, “Lo °C” will appear. Higher temperatures will be shown directly, e.g. 32,1 °C. By prolonging the length of measurement until after the acoustic signal, more accurate measurements can be obtained. In case the temperature is measured in the armpit, the thermometer should be left in the armpit for the recommended time of measurement, in spite of the acoustic signal. If temperatures over 37,8 °C are measured, a fever alarm sounds (short bleeping tones, 10 seconds long). If temperatures higher than 42,9 °C are measured, the symbol for “Hi °C” will appear. To prolong the life of the battery, please switch off the thermometer by briefly pressing the on/off key after the measurement. Otherwise the thermometer will automatically switch off after 10 minutes.

Ingredients

Technical data Type FT 09/1 Range of measurement 32 °C to 42,9 °C Accuracy of measurement ± 0.1 °C in a water bath with a temperature of 35,5 °C to 42,0 °C ± 0.2 °C in a water bath with a temperature of 32,0 °C to 35,4 °C ± 0.2 °C in a water bath with a temperature of 42,1 °C to 42,9 °C Ambient temperature +10 °C – +40 °C, with 30 % to 85 % relative humidity Storage temperature-10 °C – +60 °C, with 25 % to 90 % relative humidity The serial number is located on the device or in the battery compartment.

Warnings

Important safety information – retain for later use. In order to make optimum use of all the merits of the clinical thermo meter, you should carefully read the operating instructions before using it, retain the instructions for later use and also keep them accessible for other users. • The thermometer is intended to measure the temperature of the human body. • The thermometer is only designed for the measuring area on the human body stated in the instructions for use. • Children should not use the thermometer without supervision. • Before each use, check the thermometer for signs of damage or wear. Damaged or worn thermometers should not be used. • Always wait for the acoustic signal which indicates the minimum time required for measurement. Discuss the temperature with your family physician. • The thermometer contains sensitive electronic parts. Therefore, protect it from blows, bending, high temperature or direct exposure to sunlight. • Using the thermometer in strong electromagnetic fields such as next to a mobile phone, can cause a malfunction. • When the thermometer is switched on, it carries out a selftest. Therefore the accuracy of measurement need not be tested at regular intervals. • If the temperature is very abnormal, please contact your family doctor promptly • This device meets the requirements of the EU Directive 93/42/EEC concerning medical devices, as well as those of the Medizinproduktegesetz (German Medical Devices Act), the European Standard EN 12470-3: Clinical thermometers – part 3: Performance of compact electrical thermometers (non-predictive and predictive) with maximum device and the European Standard EN60601-1-2 (In accordance with CISPR 11, IEC 61000-4-2, IEC 61000-4-3 and IEC 61000-4-8), and is subject to particular precautions with regard to electromagnetic compatibility. Please note that portable and mobile HF communication systems may interfere with this unit.

Width

2

Height

13

Depth

2
